[04] - Auto Boot - Run Mode

To start your PLC and IO automatically upon powering up:

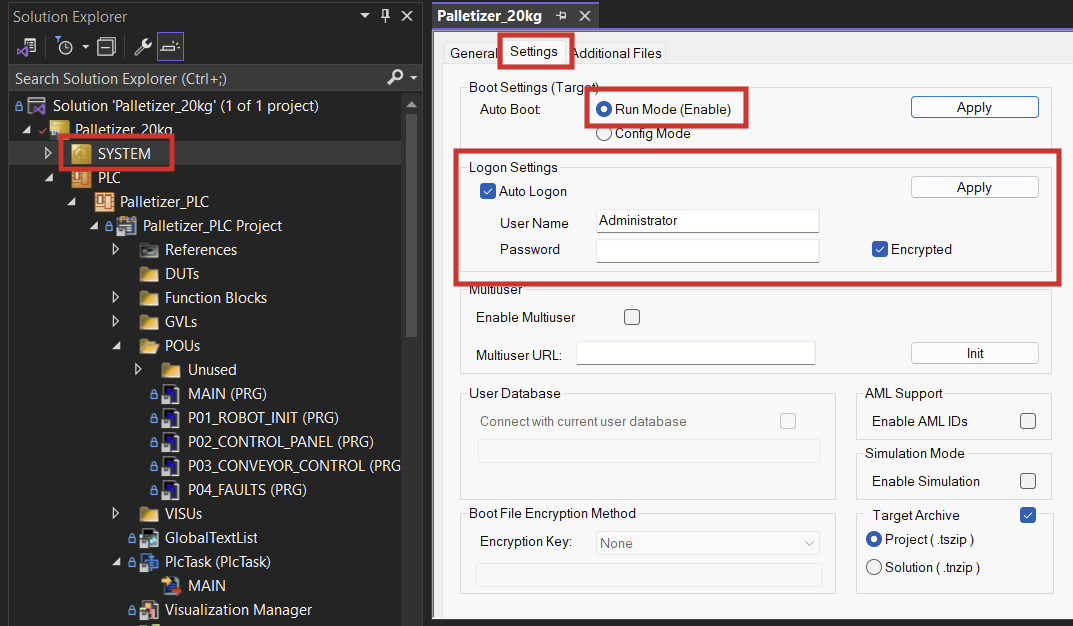

System Settings

This causes the IPC to power on into Run Mode

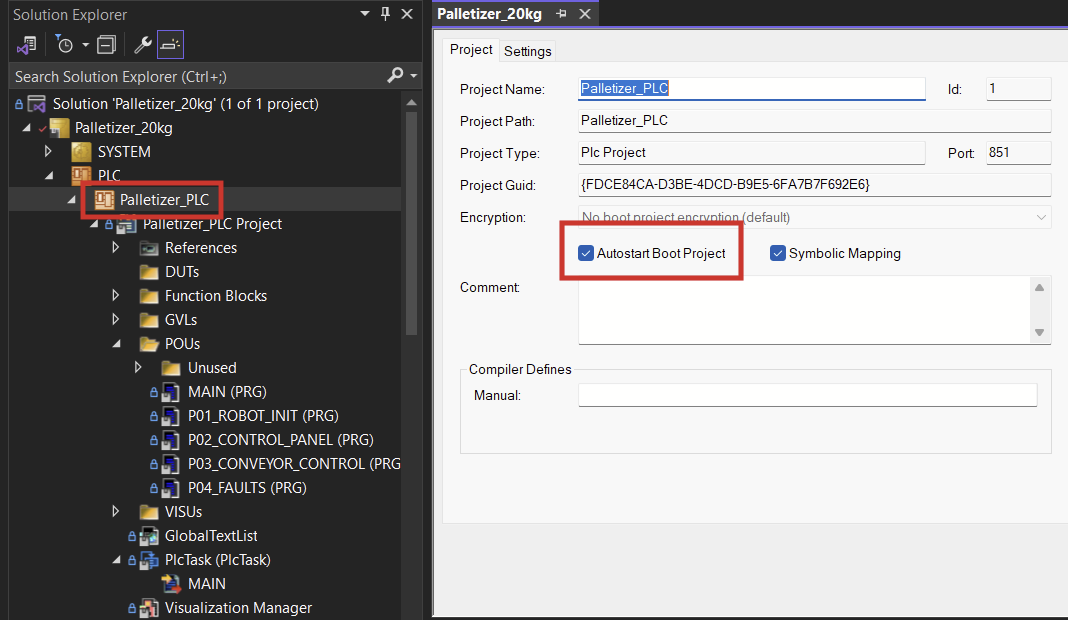

PLC Settings

This causes the PLC project to start automatically when in Run Mode
